Steam Desuperheater

Source: AGI Specialty Valves

Steam Desuperheater
The desuperheater is a regulating device for precision steam cooling by injection of cooling water into the steam pipe
The desuperheater is a regulating device for precision steam cooling by injection of cooling water into the steam pipe.

OPERATION:

  • Using regulated nozzles, the 3-stage desuperheater offers a wide control range.
  • The venturi-desuperheater injects cooling water into the steam pipe through a fixed venturi-nozzle. The special venturi shape insures an optimum mixing of steam and water.
  • The steam atomizing desuperheater injects the cooling water into the steam pipe.

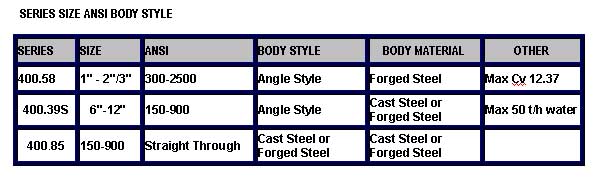

Connection : Flange Actuator : Electro, Pneumatic or Hydraulic


AGI Specialty Valves, P.O. Box 218630, Houston, TX 77218-8630. Tel: 281-578-0366; Fax: 281-578-0368.
